A JavaVM type that uses IPv4 sockets to communicate with an out-of-process JVM. More...

#include <IPv4Sockets_JavaVM.h>

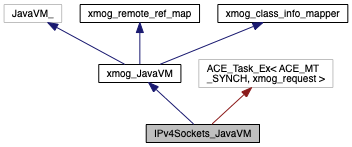

Inheritance diagram for IPv4Sockets_JavaVM:

[legend]

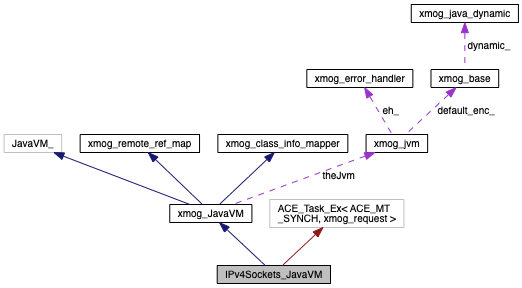

Collaboration diagram for IPv4Sockets_JavaVM:

[legend]

Public Member Functions
	IPv4Sockets_JavaVM (xmog_i_comm_strategy comm_strategy, const ACE_TCHAR server_addr, unsigned int connect_timeout=0, unsigned int reply_timeout=0)

int	signon (const char serverAppNameUTF, const char clientDisplayNameUTF=NULL, const char clientSignOnNameUTF=NULL, const char clientCredentialsUTF=NULL, int authenticationType=0, int strCopyLimit=256, int primArrayCopyLimit=256, bool bMaintainObjId=true, bool bSendStringOnFirstRef=true, bool bAlignData=true)
	Send a SIGNON request to the remote JVM and wait for its reply.

int	attach (void *penv, JavaVMAttachArgs args, bool daemon)

int	submit (xmog_request *request)

jstring	RemoteNewString (const unsigned short str, xmog_JNIEnv env, int len=-1)
	Attempts to create a string on the server.

jstring	RemoteNewString (const char str, xmog_JNIEnv env, xmog_base *encoding, int len=-1)
	Attempts to create a string on the server.

jstring	RemoteNewString (const char str, xmog_JNIEnv env, const char *encoding, int len=-1)
	Attempts to create a string on the server.

jstring	RemoteNewStringUtf (const char str, xmog_JNIEnv env)
	Attempts to create a string on the server.

jarray	RemoteNewArray (const char arrType, jsize size, xmog_JNIEnv env)
	Creates an array and returns the handle. More...

jarray	RemoteNewPrimitiveArray (const char arrType, void pData, jsize size, xmog_JNIEnv *env)
	Creates a primitive array from the given data and returns the handle. More...

virtual jarray	RemoteNewPrimitiveArray (const char arrType, xmog::xmog_data_code elemCode, void pData, jsize length, jsize size, xmog_JNIEnv *env)
	Creates a primitive array from the given data and returns the handle. More...

void	RemoteGetArrayRegion (const char arrType, jarray array, jsize start, jsize len, void buf, xmog_JNIEnv *env)
	Returns the values in a region of an array. More...

void	RemoteSetArrayRegion (const char arrType, jarray array, jsize start, jsize len, void buf, xmog_JNIEnv *env)
	Sets the values of a region of an array. More...

jclass	RemoteGetSuperClass (jclass sub, xmog_JNIEnv *env)
	Queries for a subtype's superclass. More...

jboolean	RemoteIsAssignableFrom (jclass sub, jclass sup, xmog_JNIEnv *env)
	Queries for an inheritance relationship between two types. More...

jboolean	RemoteIsInstanceOf (jobject obj, jclass clazz, xmog_JNIEnv *env)
	Queries for an instance-of relationship between an object and a type. More...

jclass	RemoteGetClass (jobject obj, xmog_JNIEnv *env)
	Queries for the type of an object. More...

Public Member Functions inherited from xmog_JavaVM
	xmog_JavaVM ()
	The default constructor.

	~xmog_JavaVM ()
	Destructor. More...

xmog_jvm *	getJvm () const
	Returns the higher-level abstraction that owns this instance.

void	setJvm (xmog_jvm *jvm_)
	Sets the higher-level abstraction that owns this instance. More...

bool	getInDestroy ()
	Returns true if this instance has started destroy processing.

void	setInDestroy (bool b)
	Sets flag to true if this instance has started destroy processing.

Public Member Functions inherited from xmog_remote_ref_map
	xmog_remote_ref_map (xmog_remote_ref_map *parentFrame)
	Constructs a reference map.

int	get_data (jobject _ref, void *pData, size_t pLength)
	Returns the cached data associated with a reference.

int	delete_global (jobject _ref)
	Deletes a global reference from the map. More...

jobject	new_global (jobject _ref, void *data=NULL, size_t size=0)
	Adds a global reference to the map.

int	delete_local (jobject _ref)
	Deletes a local reference from the map. More...

jobject	new_local (jobject _ref, void *data=NULL, size_t size=0)
	Adds a local reference to the map.

int	delete_weakglobal (jobject _ref)
	Deletes a weak global reference from the map. More...

jobject	new_weakglobal (jobject _ref, void *data=NULL, size_t size=0)
	Adds a weak global reference to the map.

xmog_remote_ref_map *	push_frame ()
	Pushes a new frame on the stack and returns the new frame.

xmog_remote_ref_map *	pop_frame ()
	Pops a frame from the stack and returns the parent frame.

Public Member Functions inherited from xmog_class_info_mapper
	xmog_class_info_mapper ()
	Constructs a mapper instance.

int	register_class (jclass id, jclass super_id, const char name, size_t numIfcs, jclass ifcs)

int	get_super (jclass sub, jclass &sup) const

int	get_class_name (jclass id, char *&name) const

int	get_num_ifcs (jclass sub, size_t &size) const

int	get_ifc (jclass sub, size_t index, jclass &ifc) const

int	is_assignable (jclass sub, jclass sup, jboolean &bAssignable) const

Additional Inherited Members
Public Types inherited from xmog_remote_ref_map
typedef jobject	Key

typedef xmog_remote_ref *	Value

typedef ACE_Map_Manager< Key, Value, ACE_Null_Mutex >	ObjectFrame

Public Types inherited from xmog_class_info_mapper
typedef ACE_Map_Manager< jclass, xmog_class_info, ACE_Recursive_Thread_Mutex >	ClassToClassInfoMap

Protected Attributes inherited from xmog_JavaVM
xmog_jvm *	theJvm
	A pointer to the higher level abstraction instance that owns this instance. More...

bool	bInDestroy_
	A guard flag against recursive invocation of the DestroyJavaVM() method.

Detailed Description

A JavaVM type that uses IPv4 sockets to communicate with an out-of-process JVM.

IPv4Sockets_JavaVM maintains session state for a process. It is a singleton.

Note

Alex - here is information that can be set to alter this class's work:

Comms strategy: As you specified, everything is done by TCP/IP now. However, it is possible to create different derivations from xmog_i_comm_strategy and use those instead. Maybe there can be a setting for which one to use (UDP, UNIX socket, etc.).
Server address: A string form address that's appropriate for the comm strategy. For TCP, it should be "host:port".
Connect timeout: For TCP, the limit of time to connect to the server, in seconds.
Reply timeout: If no reply to a client's request is received in this number of seconds, the server connection is abandoned.

Constructor & Destructor Documentation

◆ IPv4Sockets_JavaVM()

IPv4Sockets_JavaVM::IPv4Sockets_JavaVM	(	xmog_i_comm_strategy *	comm_strategy,
		const ACE_TCHAR *	server_addr,
		unsigned int	connect_timeout = `0`,
		unsigned int	reply_timeout = `0`
	)

Constructor. Specifies the communications strategy for talking to the server. Uses xmog_i_comm_tcp if not specified. If a xmog_i_comm_strategy pointer is passed in, xmog_jvm takes responsibility for releasing it - it will be deleted when no longer needed.

Member Function Documentation

◆ RemoteGetArrayRegion()

void IPv4Sockets_JavaVM::RemoteGetArrayRegion	(	const char *	arrType,
		jarray	array,
		jsize	start,
		jsize	len,
		void *	buf,
		xmog_JNIEnv *	env
	)

virtual

Returns the values in a region of an array.

Parameters

arrType	the array type in JNI representation ("Z" for bool, etc).
array	the array object handle.
start	the starting index of the region in the array.
len	the length of the region.
buf	the native buffer into which we get the value.
env	the local environment.

Implements xmog_JavaVM.

◆ RemoteGetClass()

jclass IPv4Sockets_JavaVM::RemoteGetClass	(	jobject	obj,
		xmog_JNIEnv *	env
	)

virtual

Queries for the type of an object.

Parameters

obj	the object we're testing.
env	the local environment.

Implements xmog_JavaVM.

◆ RemoteGetSuperClass()

jclass IPv4Sockets_JavaVM::RemoteGetSuperClass	(	jclass	sub,
		xmog_JNIEnv *	env
	)

virtual

Queries for a subtype's superclass.

Parameters

sub	the subtype's handle.
env	the local environment.

Implements xmog_JavaVM.

◆ RemoteIsAssignableFrom()

jboolean IPv4Sockets_JavaVM::RemoteIsAssignableFrom	(	jclass	sub,
		jclass	sup,
		xmog_JNIEnv *	env
	)

virtual

Queries for an inheritance relationship between two types.

Parameters

sub	the subtype's handle.
sup	the supertype's handle.
env	the local environment.

Implements xmog_JavaVM.

◆ RemoteIsInstanceOf()

jboolean IPv4Sockets_JavaVM::RemoteIsInstanceOf	(	jobject	obj,
		jclass	clazz,
		xmog_JNIEnv *	env
	)

virtual

Queries for an instance-of relationship between an object and a type.

Parameters

obj	the object we're testing.
clazz	the type we're testing against.
env	the local environment.

Implements xmog_JavaVM.

◆ RemoteNewArray()

jarray IPv4Sockets_JavaVM::RemoteNewArray	(	const char *	arrType,
		jsize	size,
		xmog_JNIEnv *	env
	)

virtual

Creates an array and returns the handle.

Parameters

arrType	the array type name in UTF-8 representation.
size	the array size.
env	the local environment.

Implements xmog_JavaVM.

◆ RemoteNewPrimitiveArray() [1/2]

jarray IPv4Sockets_JavaVM::RemoteNewPrimitiveArray	(	const char *	arrType,
		void *	pData,
		jsize	size,
		xmog_JNIEnv *	env
	)

Creates a primitive array from the given data and returns the handle.

Parameters

arrType	the array type name in UTF-8 representation.
pData	the array data.
size	the array size.
env	the local environment.

◆ RemoteNewPrimitiveArray() [2/2]

virtual jarray IPv4Sockets_JavaVM::RemoteNewPrimitiveArray	(	const char *	arrType,
		xmog::xmog_data_code	elemCode,
		void *	pData,
		jsize	length,
		jsize	size,
		xmog_JNIEnv *	env
	)

virtual

Creates a primitive array from the given data and returns the handle.

Parameters

arrType	the array type name in UTF-8 representation.
elemCode	the data code of the element type.
pData	the array data.
length	the array length (number of elements).
size	the array size in bytes.
env	the local environment.

Implements xmog_JavaVM.

◆ RemoteSetArrayRegion()

void IPv4Sockets_JavaVM::RemoteSetArrayRegion	(	const char *	arrType,
		jarray	array,
		jsize	start,
		jsize	len,
		void *	buf,
		xmog_JNIEnv *	env
	)

virtual

Sets the values of a region of an array.

Parameters

arrType	the array type in JNI representation ("Z" for bool, etc).
array	the array object handle.
start	the starting index of the region in the array.
len	the length of the region.
buf	the native buffer into which we get the value.
env	the local environment.

Implements xmog_JavaVM.

◆ submit()

int IPv4Sockets_JavaVM::submit ( xmog_request * request )

Submit a xmog_request for processing on the server. This method queues the xmog_request.

Parameters

request An xmog_request that gets queued for processing. On successful completion, the caller must not refer to the request; control is passed to this xmog_jvm object, which will delete it when done. If this operation fails, the caller remains responsible for properly disposing of the request. When completed, the contained ACE_Future is set with the reply information.

Return values

0	for success, -1 if the request could not be queued.

The documentation for this class was generated from the following file:

IPv4Sockets_JavaVM.h
